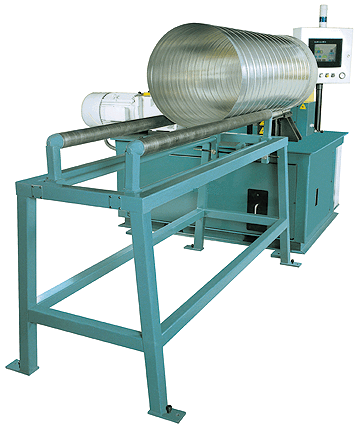

SPIRALER (Spiral Duct Machine)

Spiraler, spiral pipe machine, is an automated system for producing rigid spiral metal pipe from 4 inches (100 mm) in diameter up to 100 inches (2,500 mm) in diameter. This versatile machine enables you to manufacture pipe from a variety of materials including aluminum and galvanized steel up to 14 gauge (2.0 mm) and stainless steel up to 18 gauge (1.2 mm). Computerized pipe dimensions and adjustment data ensure uniform pipe size every time. The Spiraler is now available with the optional Gorecutter to cut elbow gore sections from spiral duct, reducing additional operations and saving labor.

The Improved

design Spiraler
available with
on the fly

torch activation

and optional

Gorecutter.

• On the fly torch activation that eliminates the arc pierce hole in the cut edge of the spiral pipe. With this enhancement the fabricator will have a smooth, uninterrupted cut plane. This is particularly attractive in smaller diameter pipe.

• A fabricator can also program the plasma cut-off torch to cut elbow gore segments from spiral pipe with the new Gorecutter option. This option eliminates blanking, rolling and side-seam fastening. The fabricator need only join the segments circumferences to fabricate an attractive and strong elbow.
